UDS019 Laptop Docking Station Dual Monitor 15-in-1 USB C Dock for USB C Windows Laptops

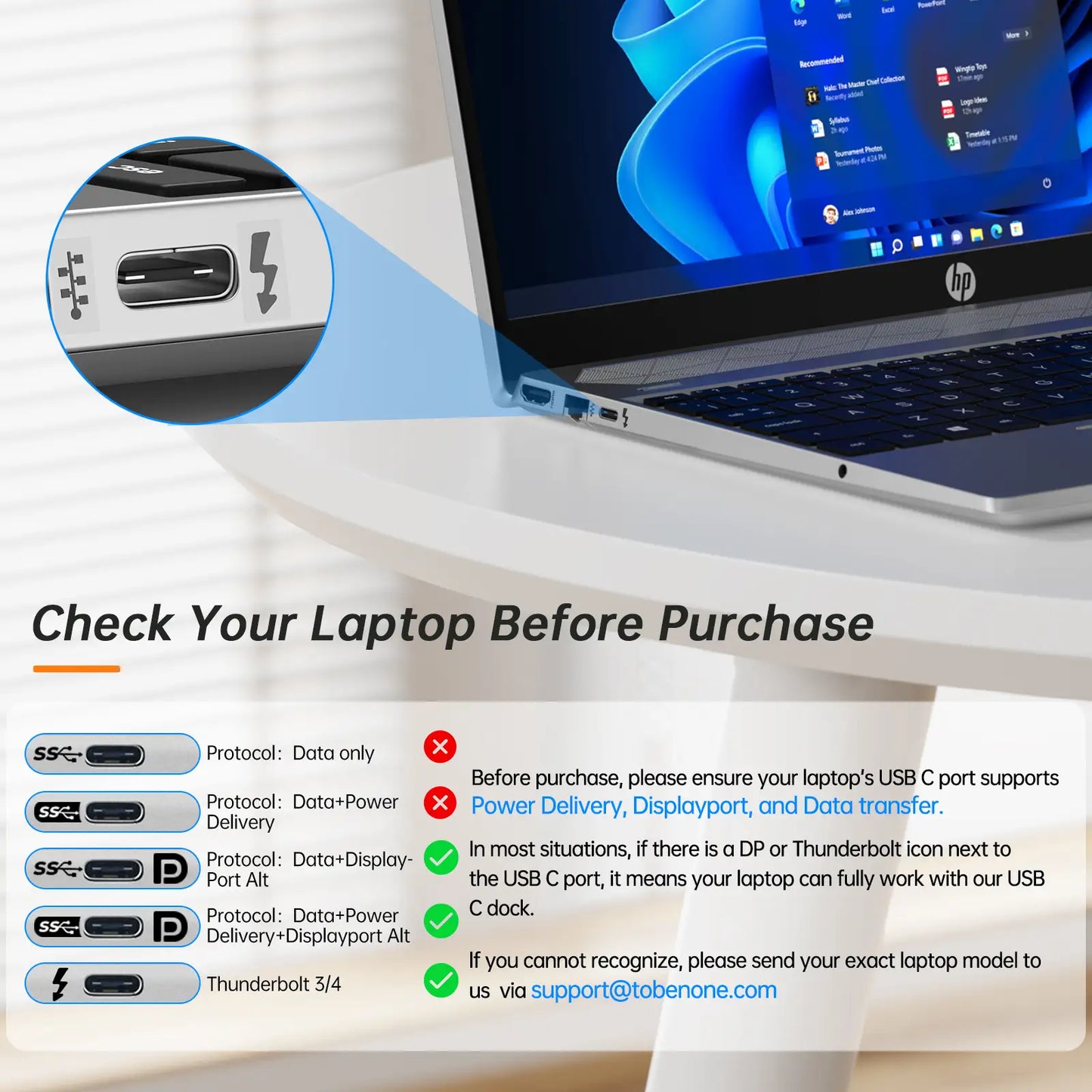

Before purchase, please make sure your laptop's USB-C port supports Power Delivery, DisplayPort, and Data transfer, you can easily find port details specifications on the laptop's user manual, or consult the seller with your exact laptop model.

USB-C is a new standard with much versatility, some USB-C supports Alt Mode video output, while others do not. Some can be powered and charged via USB-C PD, while others do not. UDS19 is a Plug&Play dual display USB C Dock, it can drive dual external monitors based on MST(Multiple-Stream Transport), which requires a USB-C laptop to support Alt-mode DisplayPort. NOTE: an extra USB to USB-C adapter is unsupported!

TOBENONE USB C dual monitor dock is fully compatible with all laptops with thunderbolt 3/4 ports.

Compatible Devices(NOT a full list):

Compatible with HP: HP EliteBook 1040 G4/EliteBook 830 g6/Elitebook 850 g5/Elitebook 840 G5 series/2018 Elite 800 G4/Elitebook 745 g6/ Elitebook x360 1030 G3/Elitebook X2/Spectre x369/Spectre x360 13t/15/15t/Spectre 360/Spectre Folio (13t-ak000cto)/Envy x360 Laptop (15z-ds100)/Envy Geforce mx250/Envy x360 15-ds1063cl/ENVY 13 (13-ad000,13-ad100) Series/ENVY Laptop 13-aq1;Zbook 17 G4/Zbook 16 G6/Zbook 15u G3/Zbook studio z5;ProBook 450 G7/Probook 440 G;HP Chromebook 14A G5/HP Chromebook-14-db0030nr;Omen laptops;

Compatible with Dell: Dell New XPS 15 i7 64GB 2TB SSD/XPS 15 9570 (Intel 8th Gen CPU)/9550/ 9560; Dell XPS 13 9380/ 9370/ 9365/ 9360/ 9350/ 9300/ 7390 2-in-1/ 7390; Dell XPS 12 2-in-1 9250; Dell Precision 7750/7730/7720/7520/7510/5510/Laptop 5590; Dell Latitude 7280/5580/5490/5480/5285/5290 2 in 1; Dell Latitude E7490/E7480/ E7470/E7370/13 E7370L/13 7000/Latitude 5310 2-in-1/Latitude 14 2-in-1 3400; Dell Alienware 15 R3/G7 15 Gaming 7588/G5 15 Gaming 5587/13 R3; Inspiron 15 2-in-1 7569/13 2-in-1 7389/13 2-in-1 7378;

Compatible with Lenovo: Lenovo Thinkpad T590/Lenovo ThinkPad L480/Lenovo Yoga 940-14IIL / Yoga 930/ Yoga 920/ Yoga 910/ Yoga 900-13ISK/ Yoga 730/ Yoga 720-13IKB/ Lenovo Yoga 720/ Yoga 370/ 3rd generation Thinkpad Yoga/ Yoga C930 / Yoga c940/ Yoga C740-15IML/ Yoga 7i / Yoga15 Ultrabook Pro ; Thinkpad T490/ Thinkpad T490s/ Thinkpad T470/ Thinkpad T470s/ Thinkpad P72/ Thinkpad X1 Carbon (2019 model) / Thinkpad Carbon X1 Gen6/ ThinkPad X1 Extreme;

Compatible with Asus: Ling Yao 3/ Ling Yao 3PRO/ Ling Yao X Series/ 13'' Zenbook/ UX330UA; Zenbook ux434f/ Zenbook flip ux370u/ ZenBook Flip 14 UX461UN-DS74T/ TUF Gaming A15 Gaming Laptop/ Zephyrus G14/ Rog GX501;

Compatible with Acer: aspire5 2019 / d17w3 aspire c24-865 / swift 7 sf714-52t-75r6 laptop / Swift 1 laptop / Spin 5 SP513-52N-52PL / Chromebook 11 CB311-8H-C5DV;

Compatible with Surface: Microsoft Book 2 / Go / Laptop 3; Pro 7 / Pro 5 / Pro X

• 15-in-1 USB C docking station: With this TobenONE USB C docking station dual monitor you can easily extend your Windows laptop from one Type C/Thunderbolt 3/4 port into 15 ports, this dock is equipped with dual HDMI, VGA, 4×USB 3.0, and 1×USB C data transfer ports(5Gpbs), USB C PD 3.0, 2×USB 2.0 for wireless devices such as keyboard or mouse, 3.5mm Audio, SD/TF reader and RJ45 Gigabit Ethernet, which fully meet your needs in daily life.

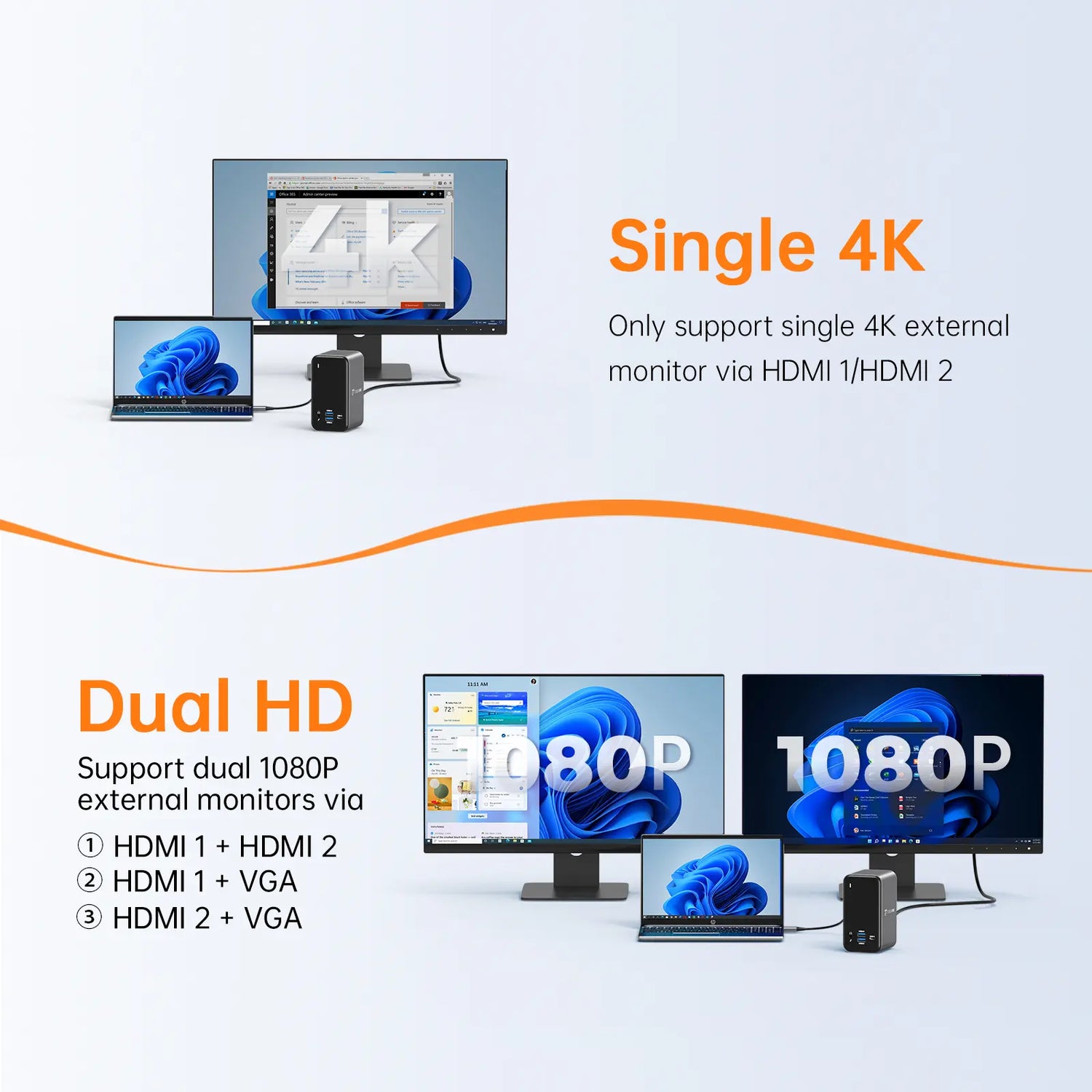

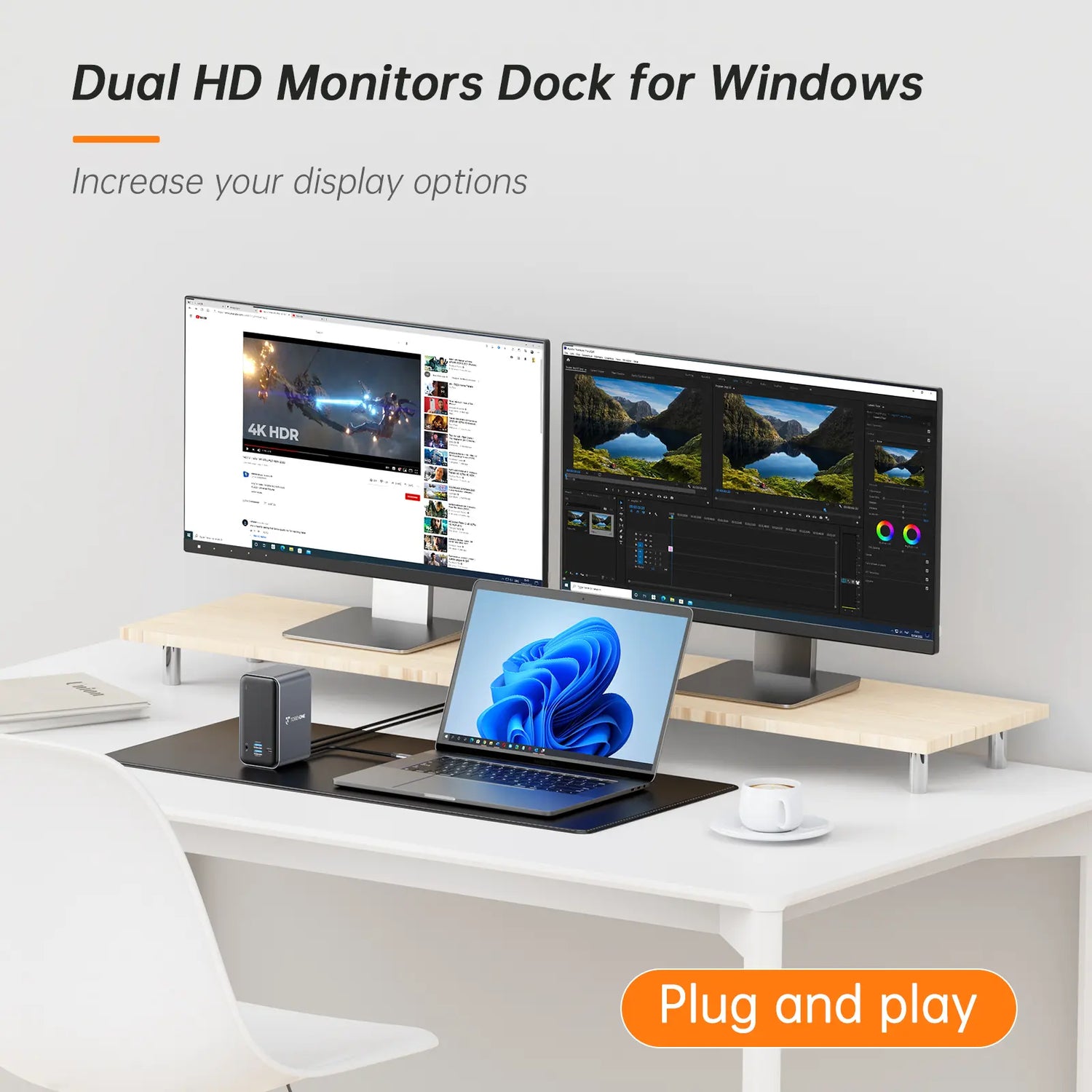

• Docking Station Dual Monitor: This TobenONE docking station with 2 HDMI ports can easily expand dual HD external monitors, using different monitors to do different projects will make your work/life more efficient. Single-use HDMI 1max up to 4K@60Hz, HDMI 2 up to 4K@30Hz(DP1.4 source) which will greatly help you facilitate high-resolution works, such as video editing, medical imagery, and more. When connecting 2 displays, 2 HDMI resolutions will be 1080P(DP1.4).

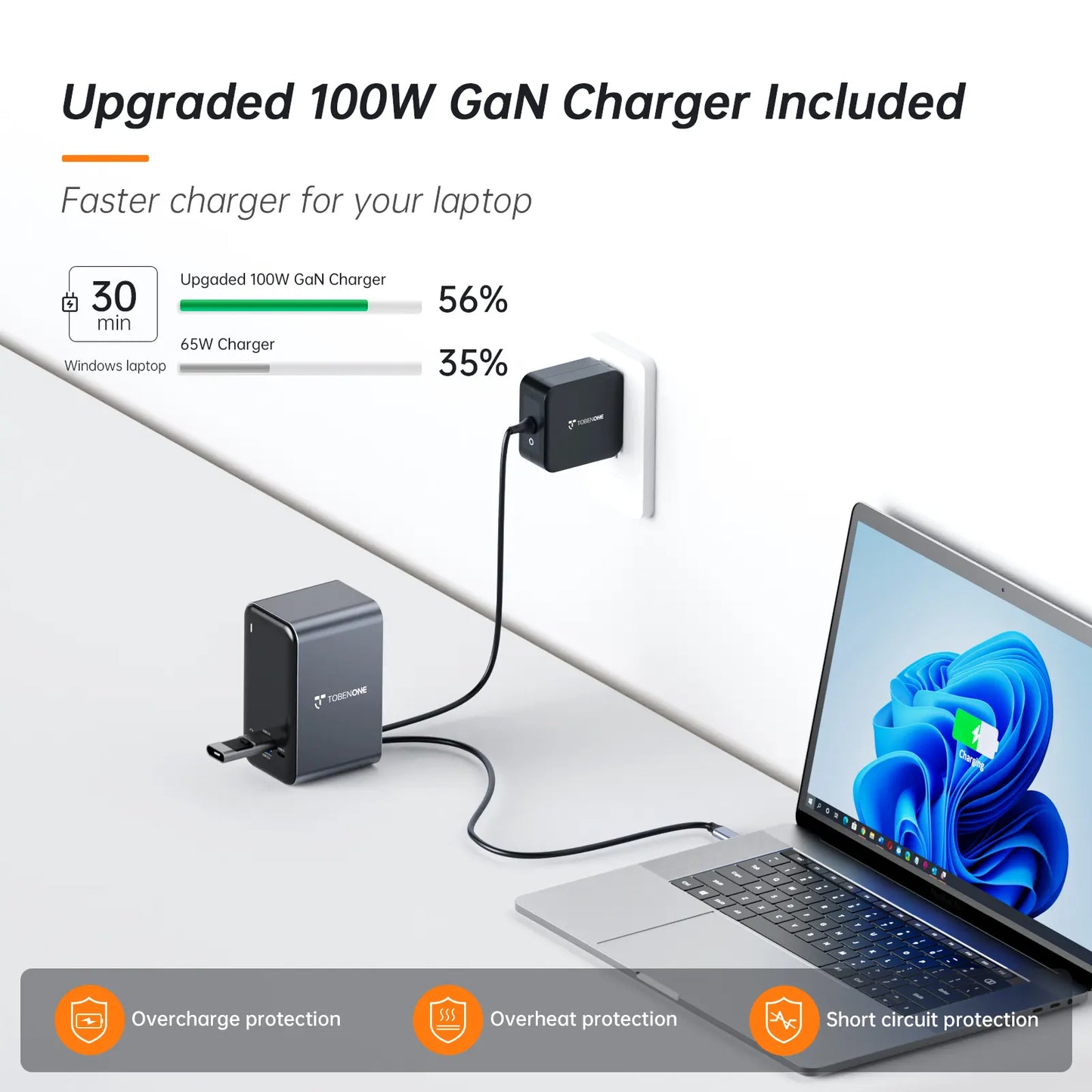

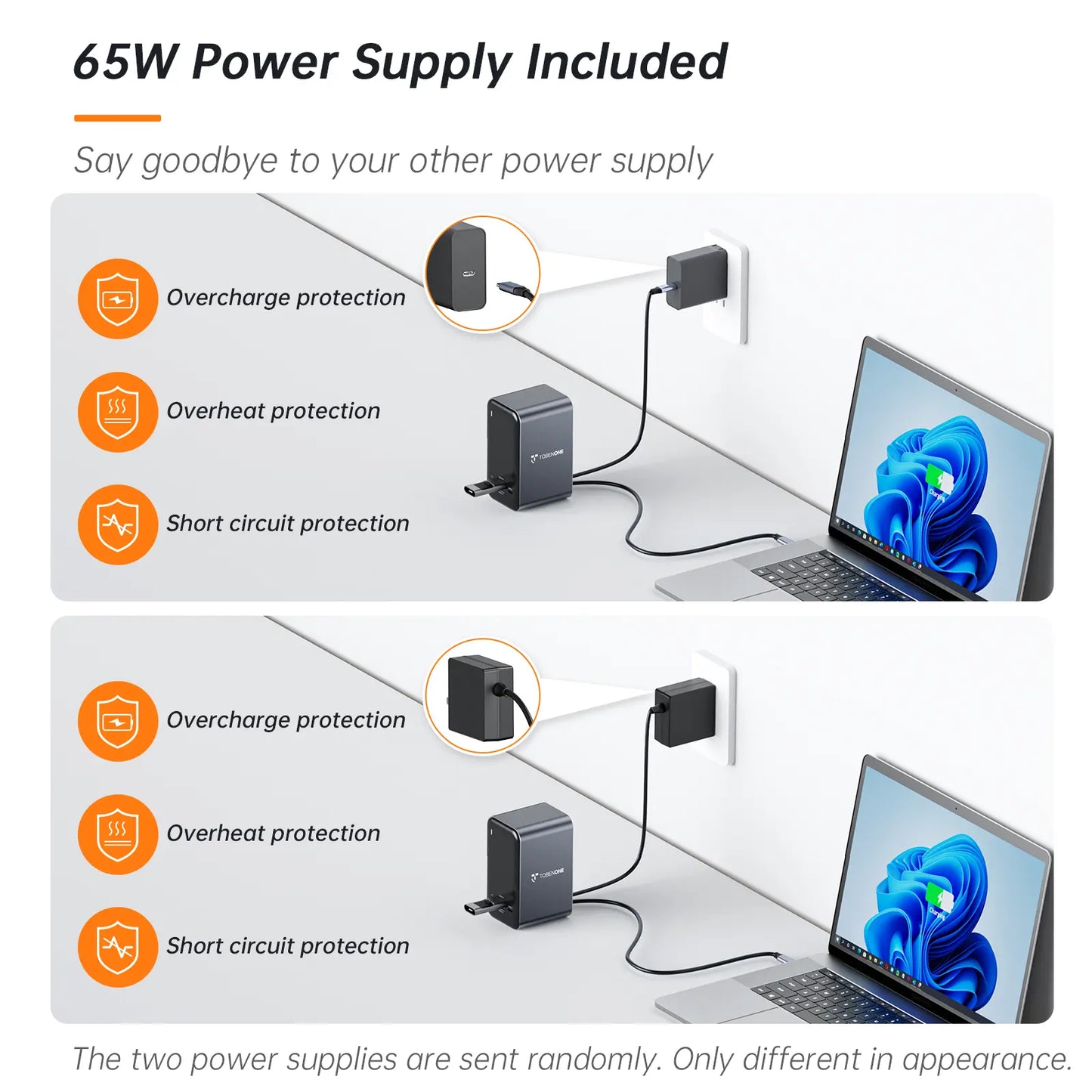

• 65W Power Supply Included to Charge Your Laptop: This laptop docking station has a 65W power supply that provides powerful battery charging for both the laptop and the dock itself, ensuring safe and stable performance during usage. So you do not need to use an additional power supply for your laptop, which is very convenient.

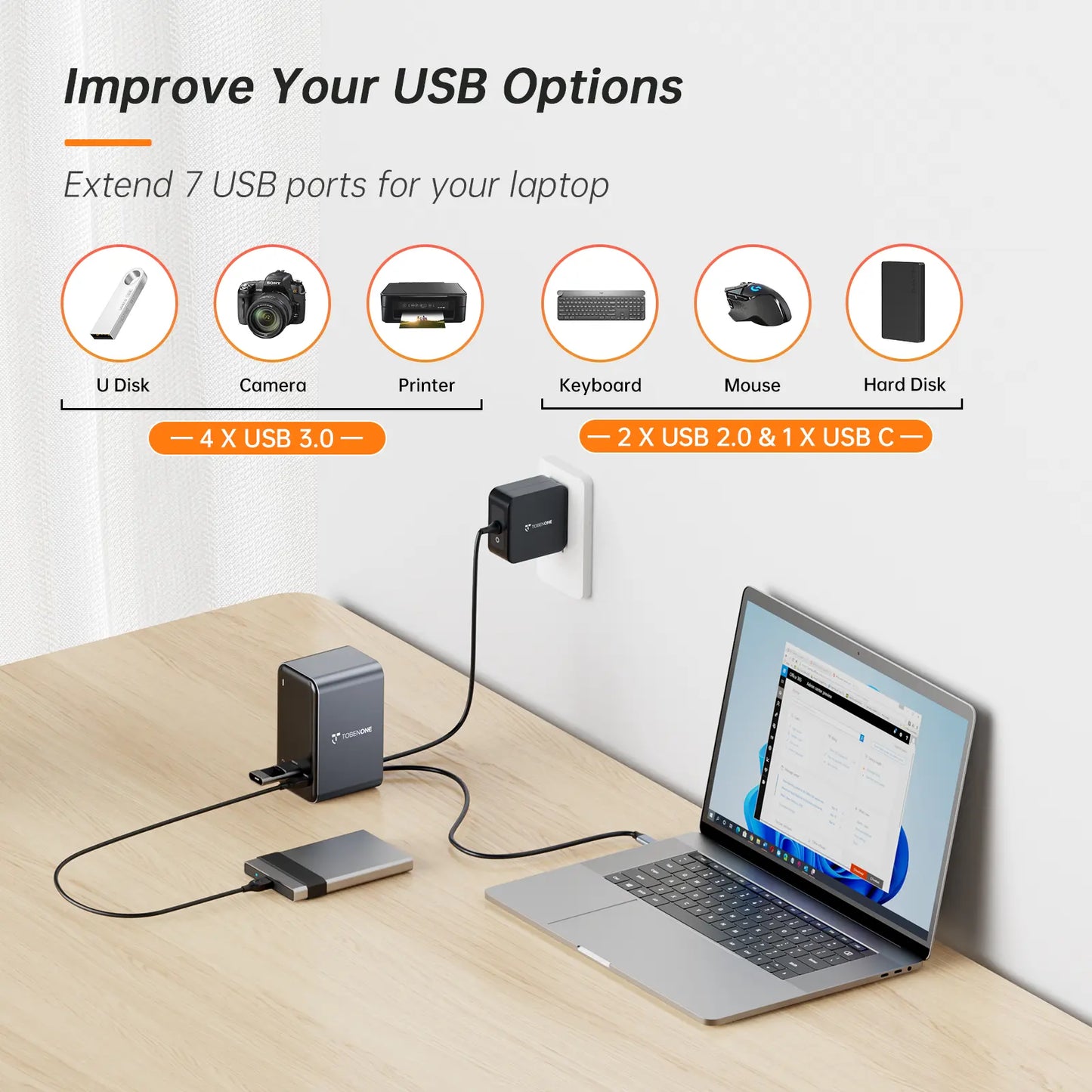

• 7 USB Ports of This USB C Dock: This USB C docking station for Dell laptops is equipped with 4xUSB 3.0, 2xUSB 2.0, and 1 x USB C port allows you to connect multi USB devices to Windows laptops such as mouse, keyboard, hard drive, webcam, etc. 4 x USB 3.0 and 1 x USB C ports support data transfer rate up to 5 Gbps for your hard drive or USB disk. 2 extra USB 2.0 allows you to connect keyboard or mouse without any lag. Note: The USB C port only supports data transfer, and cannot support display.

• Multi-compatibility Laptop Dock: TobenONE USB C dual monitor docking station is specially designed for Windows laptop with full feature USB C or thunderbolt 3/4 ports. Such as Dell XPS13/15, HP Spectre, Lenovo Yoga 720/910, Surface Pro 7 etc. Please check the USB C port of your laptop that supports DisplayPort Alternate Mode before purchase.

MODEL NUMBER: UDS019

DRIVERS

Plug and play, no driver needed.

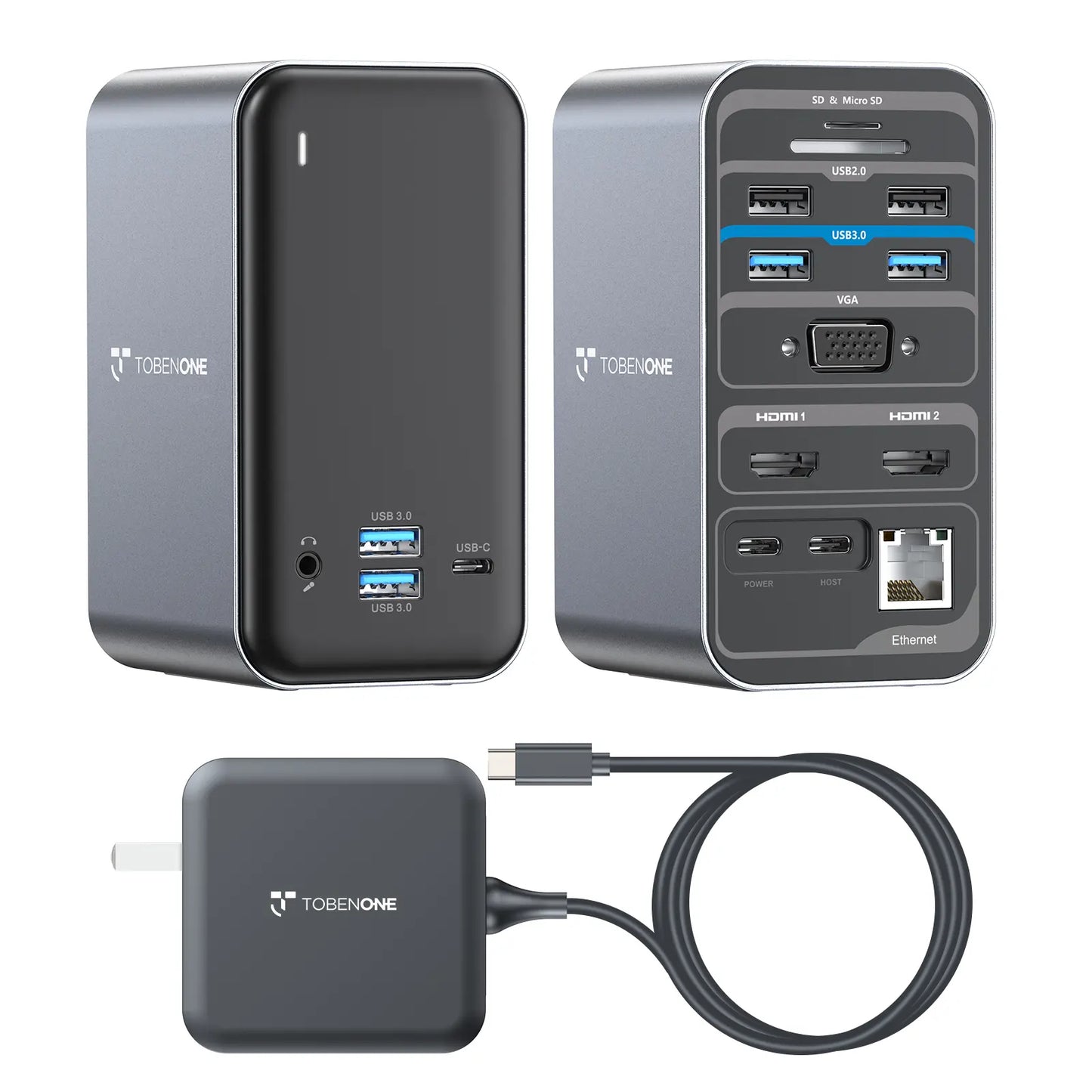

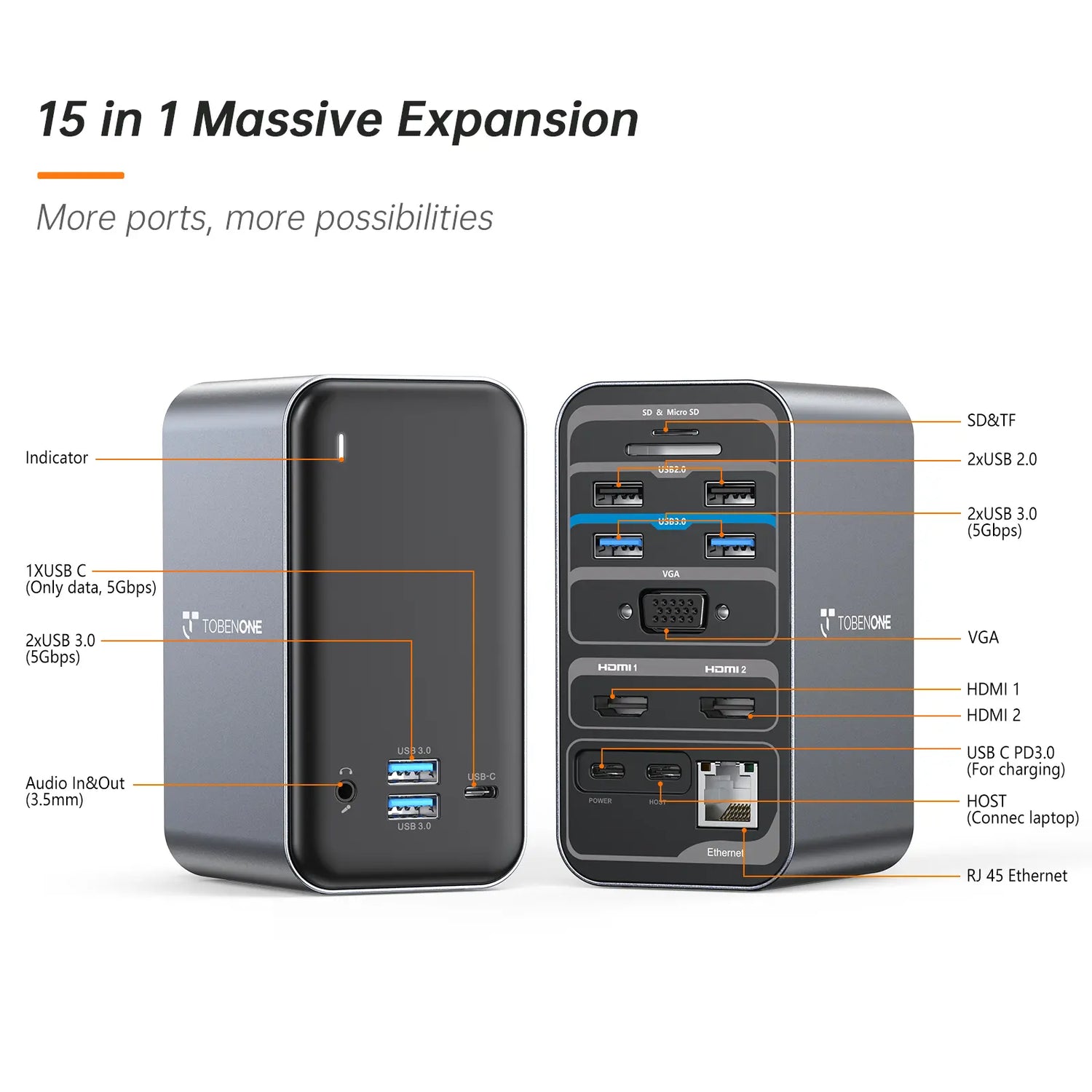

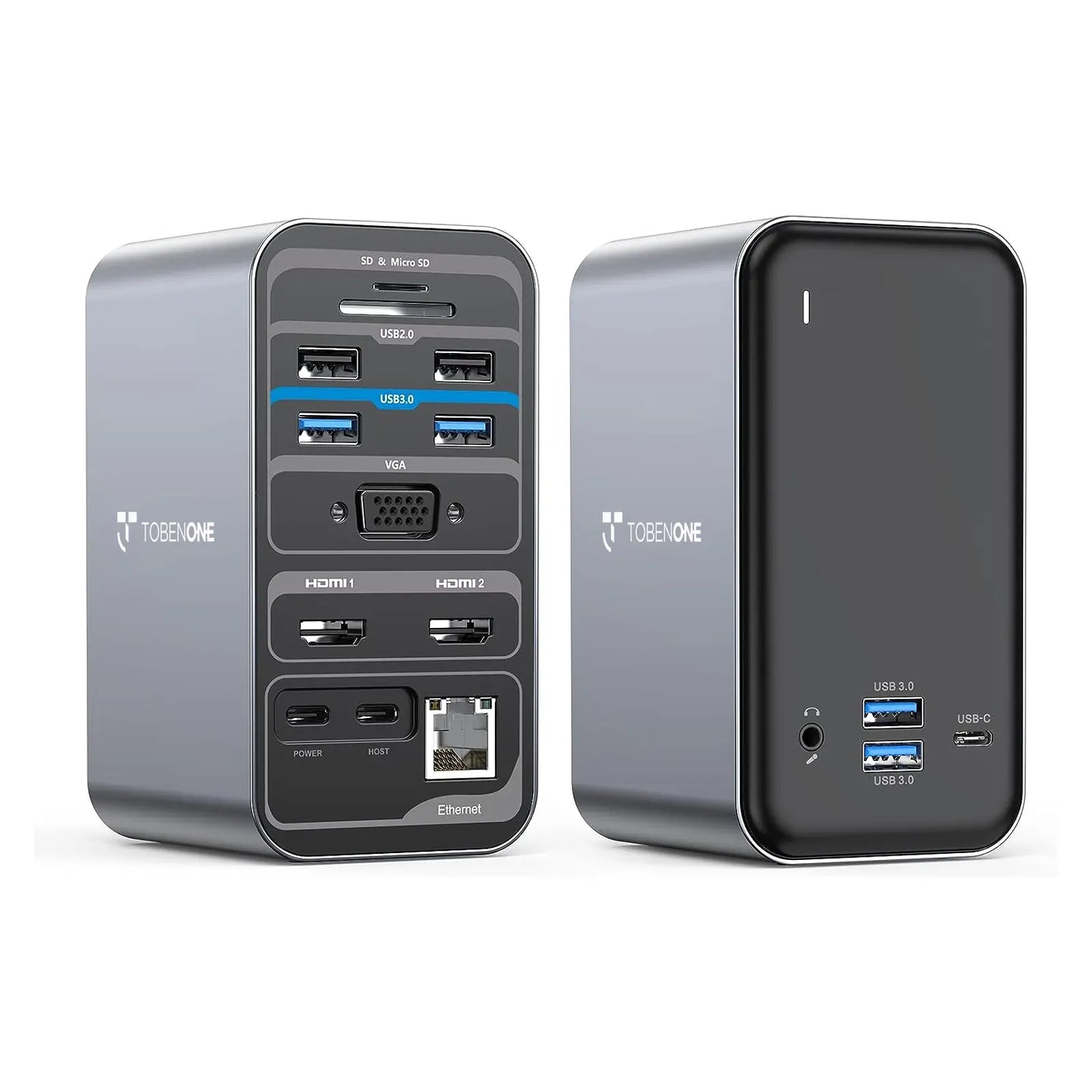

FEATURES

Front:

1x 3.5mm Audio/Microphone

2x USB 3.0: 5Gbps, 5v@0.9A

1x USB-C Gen 1: Data Tranfer up to 5Gbps, 5v@0.9A

Back:

1x SD/Micro SD: UHS-1, supports SDXC,SDHC,SD,MMC,RS-MMC Card

2x USB 2.0: 480Mbps, special for mouse and keyboard

2x USB 3.0: 5Gbps, 5v@0.9A

1x VGA: 1080P@60Hz

1x HDMI1: 4K@30Hz

1x HDMI2: 4K@30Hz or 4K@60Hz on DP1.4

1x USB-C PD 3.0: Support 100w adapter, max 87w charging for safety

1x USB-C to Host: Connect your USB-C laptop

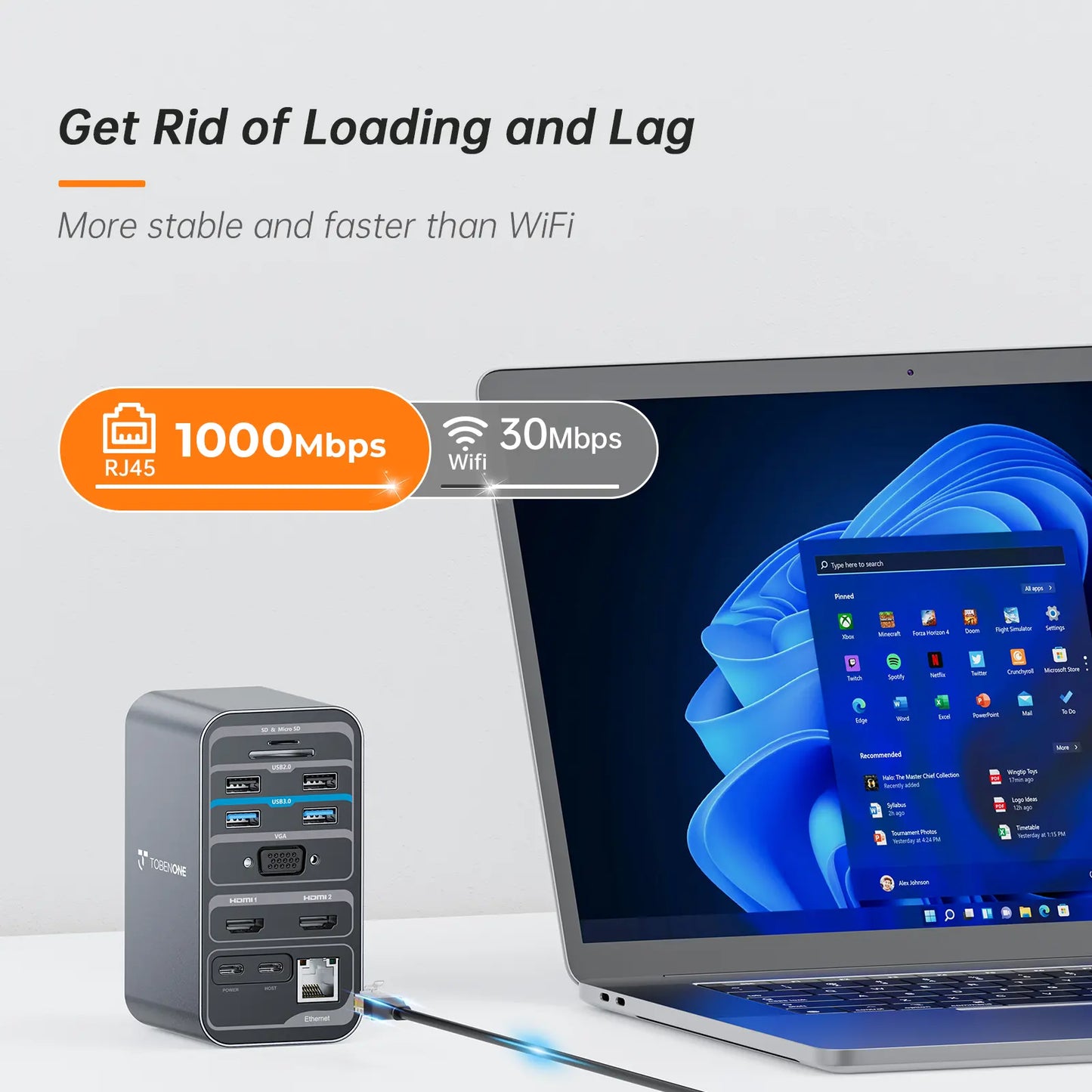

1x RJ45 Gigabit Enthernet: 10/100/1000Mbps

DIMENSIONS & WEIGHT

7.56 x 5.87 x 2.91 inches, 1.57 pounds

QUICK GUIDE

User Manual

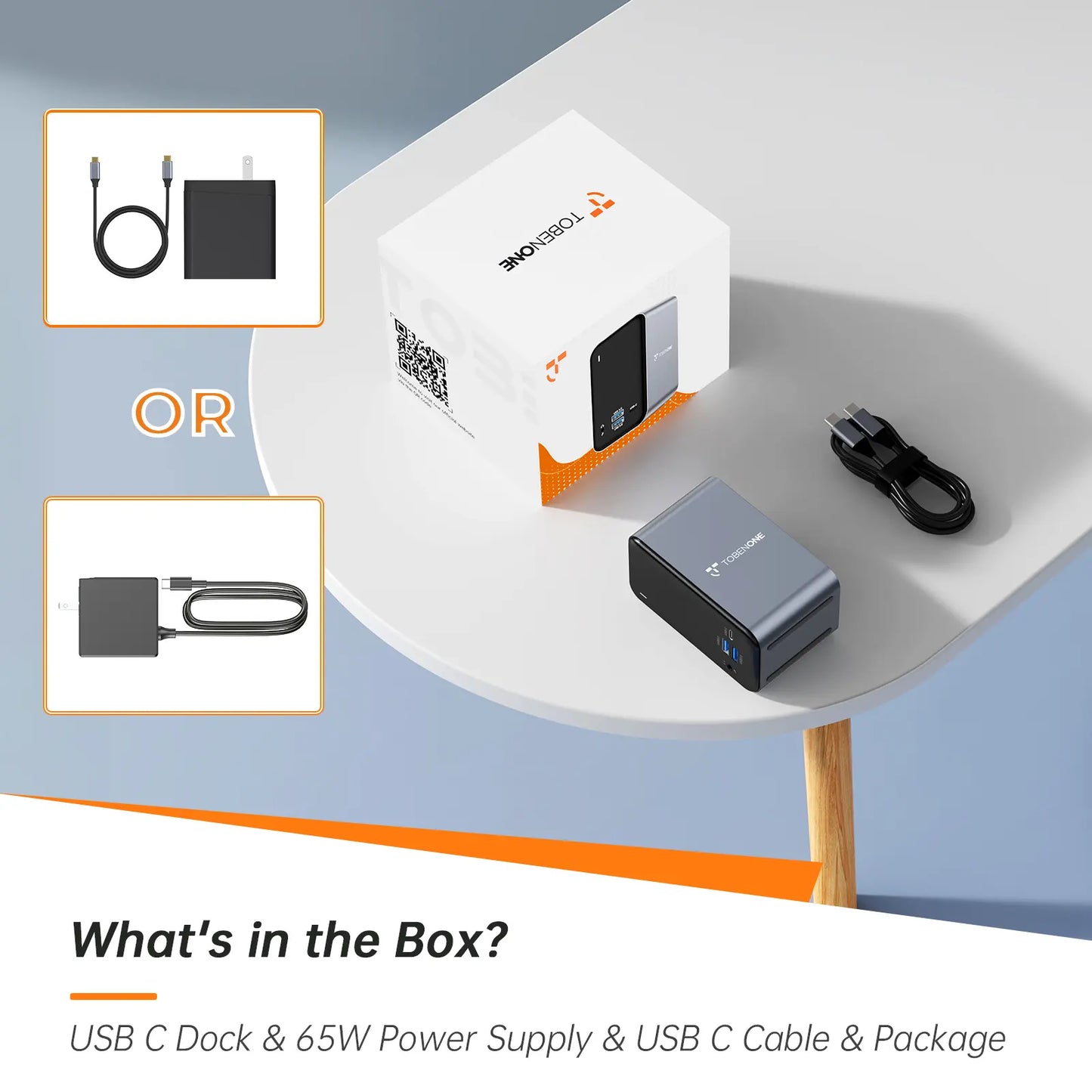

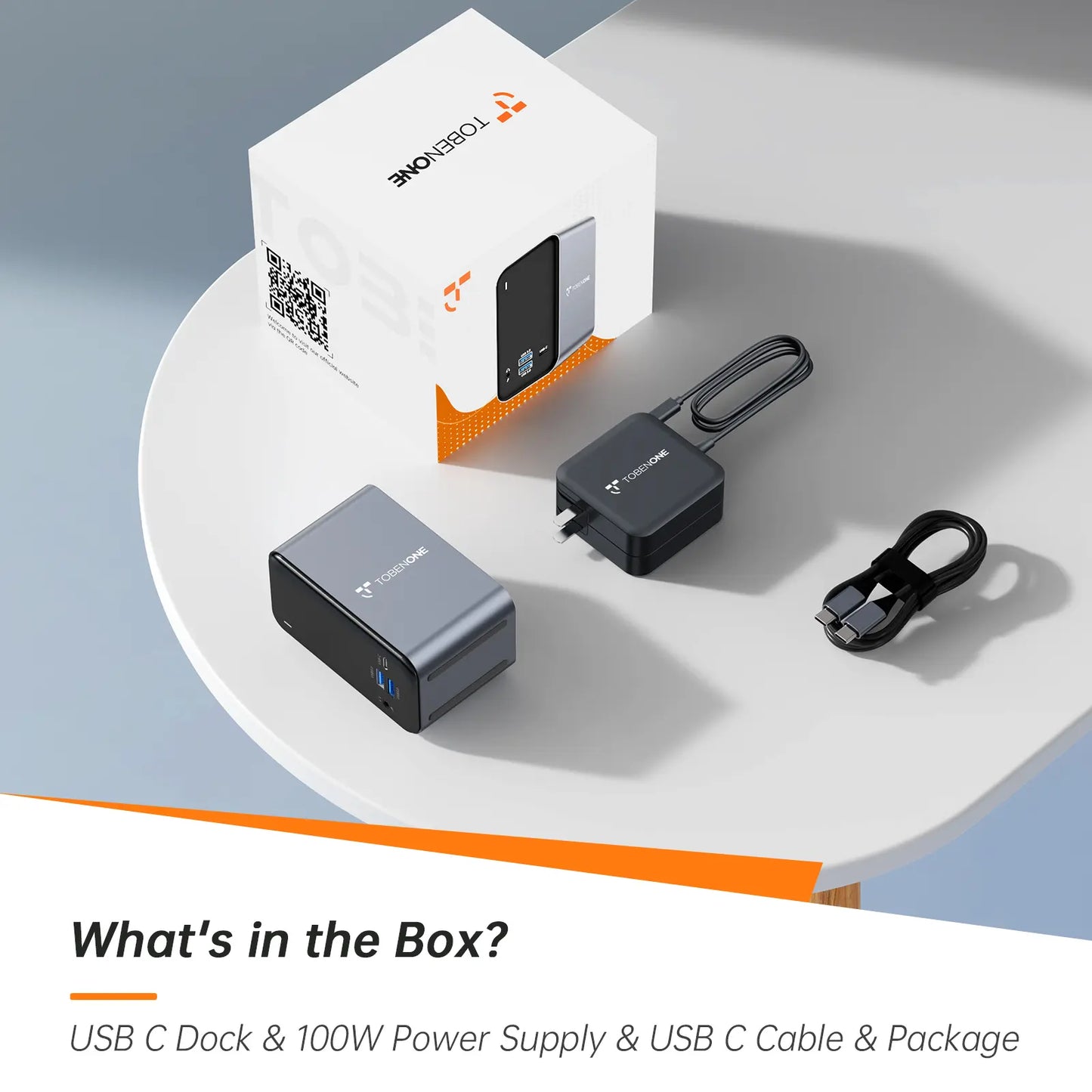

PACKAGE INCLUDES

1 x UDS019 docking station

1 x 3.3ft USB-C cable

1 x power supply (65W/100W optional)

1 x user manual

GUARANTEE

2 Year Warranty

Q: In this dual monitor laptop docking station,can i use the sd/tf port at the same time?

A: Yes, you can use the TF/SD card slot at the same time.

Q: How can i extend 2 monitors and display different content when i use this dual monitor laptop dock.i do not want mirror.

A: Please attach your windows laptop to HDMI1 and HDMI2 or HDMI1 and VGA port to extend different monitor.

Q: Would it hdmi port support 240hz at 1080p?

A: Hello, No. This USB C Laptop Docking Station HDMI port only can support 60 HZ at 1080P for full feature USB C Windows laptop.

Q: I found 3 USB C port in this laptop docking station,can i extend monitor via usb c port?

A: Sorry to say that the USB C port cannot extend monitor in this USB C laptop docking station.

Q: Can this docking station dual monitor extend dual monitors and display different content?i am using a windows laptop with thunderbolt 4 port

A: This docking station dual monitor can extend dual monitors and display different content if you use a windows laptop with thunderbolt 4 port.

Q: Is this fully compatible for a Surface Pro 7?

A: Hello, sorry, our USB C dual monitor docking station can not fully compatible with your laptop due to the USB-C port of your laptop only support data transfer, NOT for Power delivery and Alt-mode DisplayPort, which means your laptop can't extended monitor and be charged when working with our dual-monitor docking station.

Q: Does this work with a displayport to usb-c adapter?

A: Hello, no. Sorry to say this USB C docking station dual monitor cannot work with a DisplayPort to USB C adapter.

Q: My dell laptop does not have a usb-c, will this usb c laptop docking station work if i use a usb to usb-c adapter?

A: Sorry to say that our docking station can not work with a laptop which does not have a full feature USB C Port.

Q: I have a usb ac charger for my del. Can I use this to power the dock instead of the supplied power brick?

A: Hello, may I know how many watts your power supply is? It is recommended to use a power supply greater than 65W to connect this USB C docking station dual monitor to provide a more stable connection.

Q: I have an alienware 17mx r3 that has a mini display port. If i used a usb c to mini display port cable, does anyone know if this would work with the d

A: Sorry to say that the USB C port of the dock only support data transfer, not for display.

Q: How many watts does the included power adaptor supply to the laptop for charging?

A: Hello, this USB C docking station comes with a 65W power supply, the product consumes about 13W of power and can charge a laptop about 52W.

Q: Does this come with the usb-c cable to connect to the lapto

A: There are 2 USB C cables in the parcel, one for connecting the laptop and the dock, one for charging.

Q: Does this dual monitor laptop dock come with power supply?i do not wanna to use my laptop power supply to charge this dock.

A: Yes, this dual monitor laptop dock goes with a 65W power supply.

Q: Can I use my laptop screen after I plug in 2 monitors?

A: Hello, yes. This USB C docking station only can extend dual monitor for full feature USB C windows laptop, please check the USB C port of your Windows laptop that supports DisplayPort Alternate Mode before purchase.

Q: I want to extend 3 monitor when i use this dock,can this laptop docking station extend 3 different monior?

A: Sorry to say that this dual monitor only can extend 2 different monitor, if you connect 3 monitors, HDMI2 and VGA are same.



If you have any questions, please let us know via support@tobenone.com.
