UDS040M Vertical Docking Station Dual Monitor for MacBook Pro/Air, All-in-One USB C Dock Stand
UDS040M Vertical Docking Station Dual Monitor for MacBook Pro/Air, All-in-One USB C Dock Stand

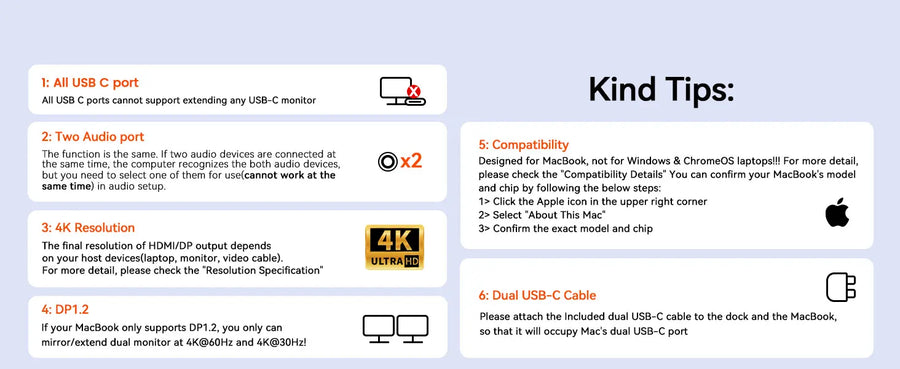

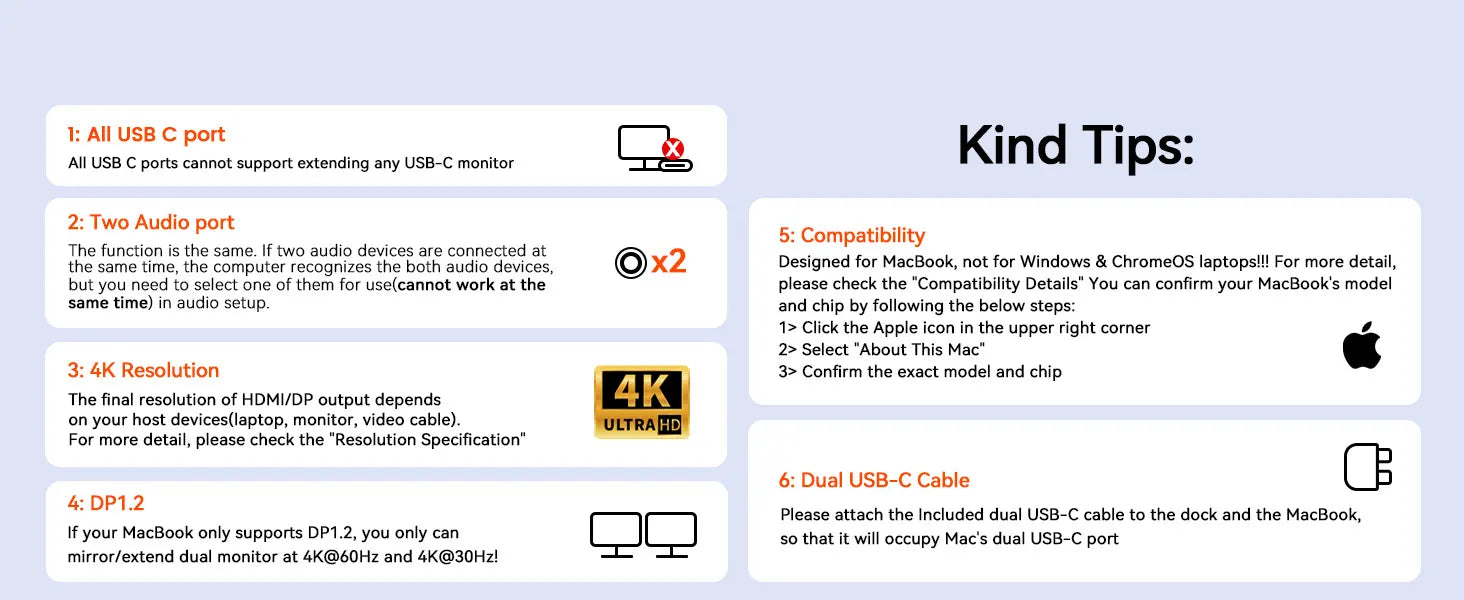

Purchase Notes
Purchase Notes
1. All USB C ports cannot support extending any USB-C monitor.
2. The function is the same. lf two audio devices are connected at the same time, the computer recognizes the both audio devices, but you need to select one of them for use(cannot work at the same time) in audio setup.

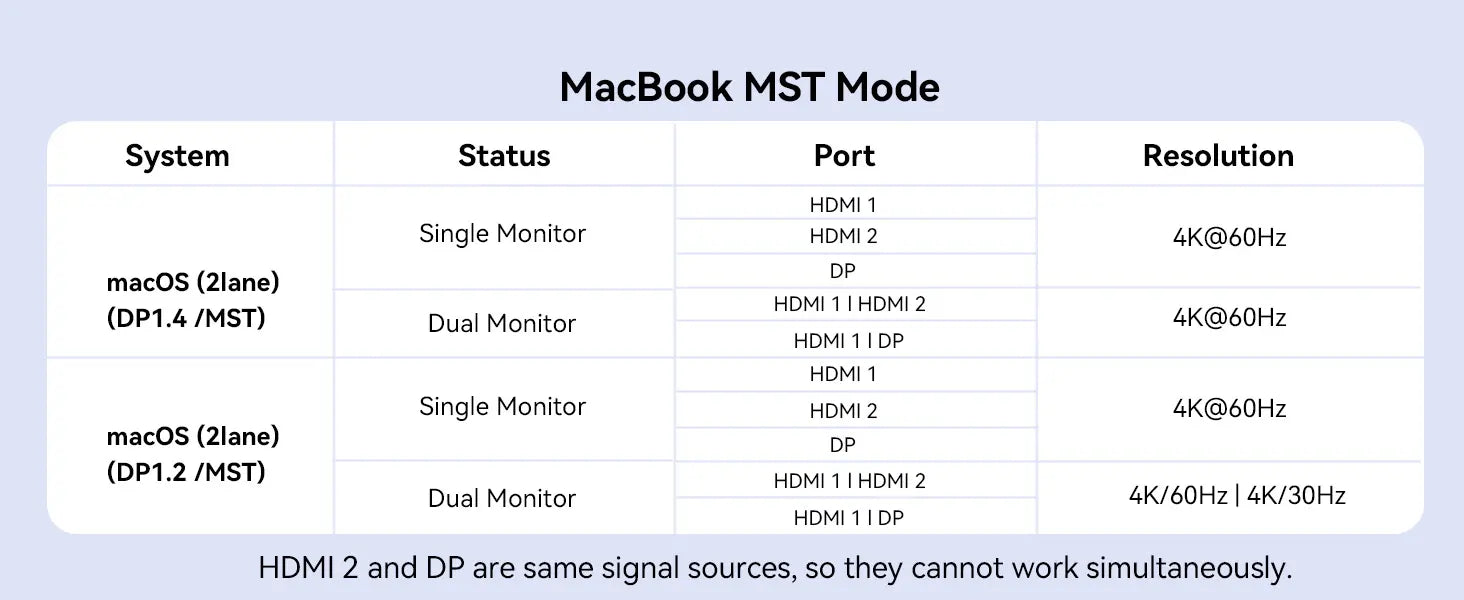

3. The final resolution of HDMl/DP output depends on your host devices(laptop, monitor, video cable). For more detail, please check the "Resolution Specification
4. lf your MacBook only supports Dp1.2, you only can mirror/extend dual monitor at 4K@60Hz and 4K@30Hz!
5. Designed for MacBook, not for Windows & ChromeOS laptops!!
6. Please attach the Included dual USB-C cable to the dock and the MacBook, so that it will occupy Mac's dual USB-C port

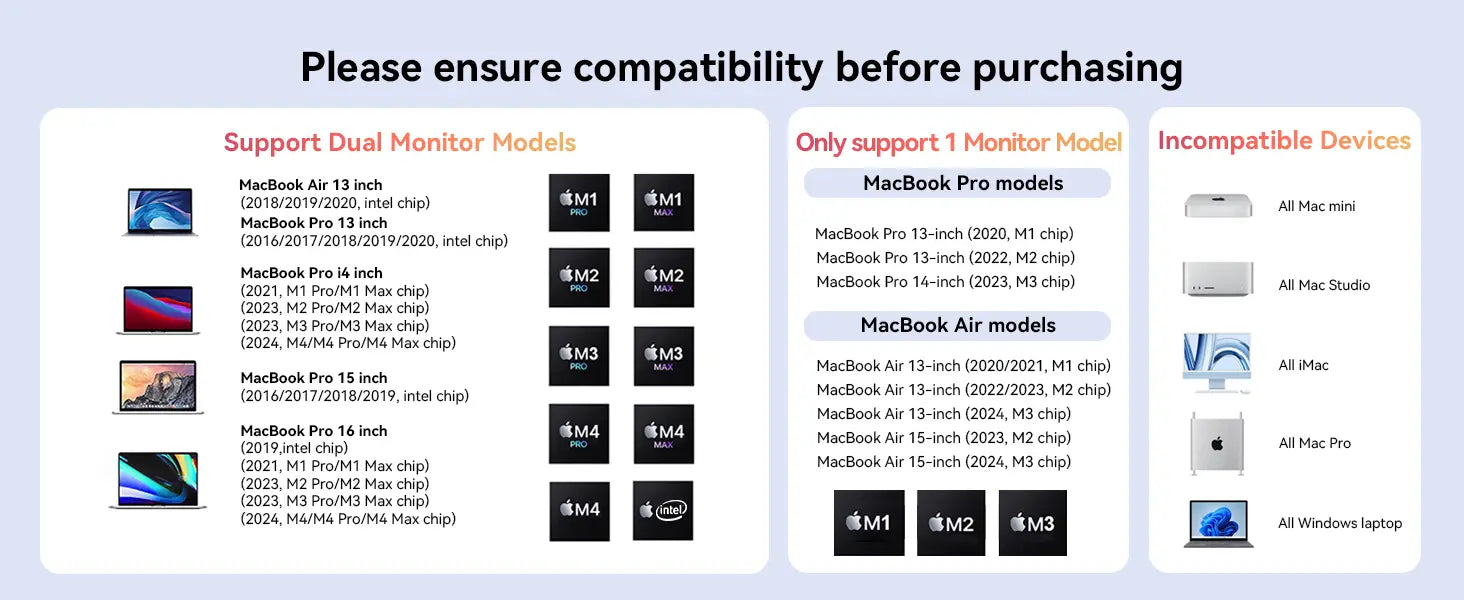

Compatibility
Compatibility
Compatibility:
Retina 13 inch 2018/2019/2020 MacBook Air Intel Chip
13 inch 2016/2017/2018/2019/2020 MacBook Pro Intel Chip
14 inch 2021 MacBook Pro M1 Pro or M1 Max; 2023 MacBook Pro M2 Pro or M2 Max; 2023 MacBook Pro M3 Pro or M3 Max
15 inch 2016/2017/2018/2019 MacBook Pro Intel Chip
16 inch 2021 MacBook Pro M1 Pro or M1 Max; 2023 MacBook Pro M2 Pro or M2 Max; 2023 MacBook Pro M3 Pro or M3 Max
NOTE:
1> M1/M2/M3 Mac Users Only can get one external monitor:
13 inch 2020 MacBook Pro M1/13 inch 2022 MacBook Pro M2/13 inch 2020 MacBook Air M1/ 13 inch 2021 MacBook Air M1/ 13 inch 2022 & 2023 MacBook Air M2/ 14 inch 2023 MacBook Pro M3/ 15 inch 2023 MacBook Air M2
2> This MacBook docking station is not compatible with all Windows&ChromeOS laptops.
Description
Description
-
Connectivity for All Your Devices: The UDS040M macbook docking station dual monitor provides a comprehensive suite of connectivity options with 2 HDMI, DP, 8 USB C/A, 2.5G Ethernet, SD/TF 4.0, HOST, DC and 2 audio ports. Designed for office professionals and remote workers, it also features a device holder slot for putting your laptop, tablet or phone on, making your workspace organized and efficient.
-

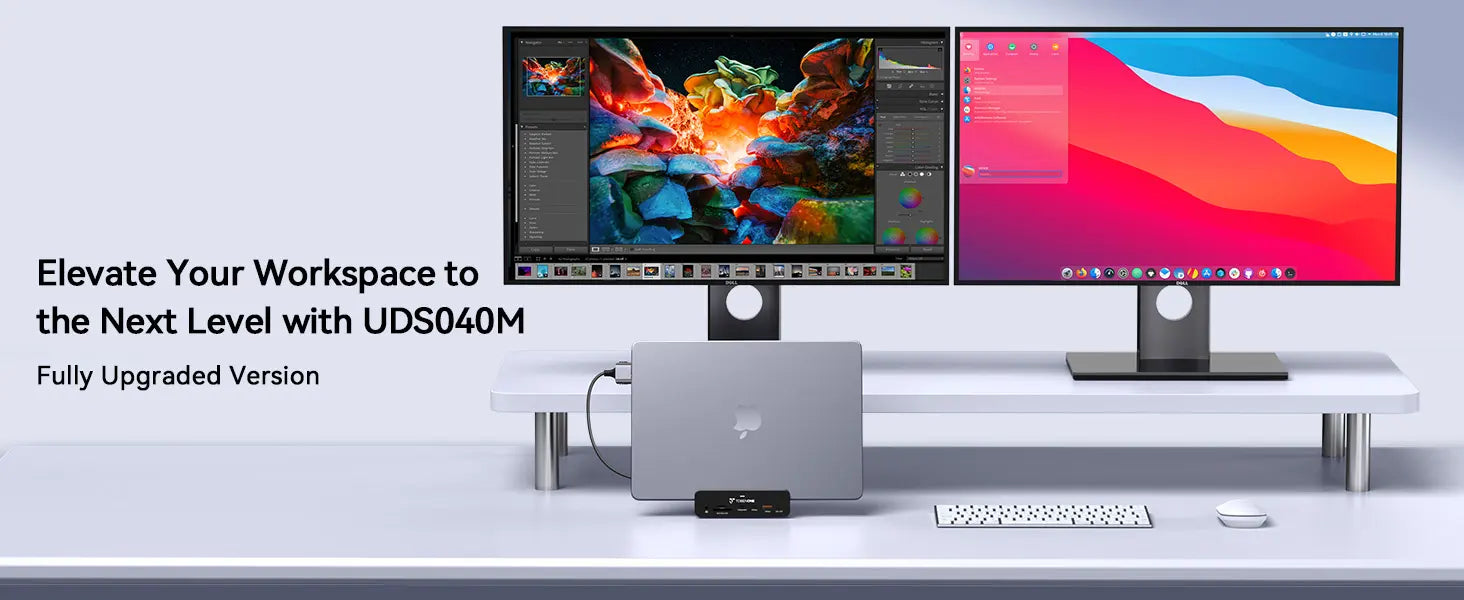

Unlock Dual 4K Monitor Potential: Double elevate your workstation's capabilities with this TobenONE docking station's capacity to seamlessly connect up to dual external monitors with ease(Simply Plug-and-Play). With dual HDMI ports and one DisplayPort, it offers flexible configuration for different monitor setups. Enjoy up to dual 4K@60Hz(DP1.4) resolution, providing the ultimate visual experience for multitasking, presentations, and extended multi displays. Elevate your work to the next level. NOTE: HDMI 2 and DisplayPort are the same signal source, so they can’t be used simultaneously.
-
Superior Charging Capability: Our mac docking station dual monitor includes a powerful 150W power adapter, making it the ultimate solution for your charging needs. It offers up to 100W of charging power for your MacBook. Plus, you can quickly recharge your phone or tablet from the front USB-C port, with up to 20W of charging power. With this USB C docking station for MacBook Pro/Air, you'll discover a whole new level of charging flexibility and convenience.
-
Designed for Your MacBook: TobenONE's Mac dock station is designed to fit multiple MacBook models, including 13-inch 2018/2019/2020 MacBook Air with Intel chip, 13"/15" 2016/2017/2018/2019/2020 MacBook Pro with Intel chip, 14"/16" 2021 MacBook Pro with M1 Pro or M1 Max chip, 14"/16" 2022 MacBook Pro with M2 Pro or M2 Max chip, and 14"/16" 2023 MacBook Pro with M3 Pro or M3 Max chip. Note that it's not compatible with Windows laptops and MacBook with M1/M2/M3 chips can only extend one monitor.
-
Versatile USB Connectivity: This docking station for mac boasts 7 powerful USB ports including 1*USB C 3.2, 1*USB 3.2 A, 1*USB C 3.0, 2*USB 3.0, and 2*USB 2.0, offering a wide range of connectivity options for all your devices. Effortlessly connect external drives, printers, keyboards, smartphones, webcams, and more, all at once. Plus, with transfer speeds of up to 10Gbps, it lets you enjoy lightning-fast file transfers without wasting your precious time. Stay connected, efficiently and reliably.
-

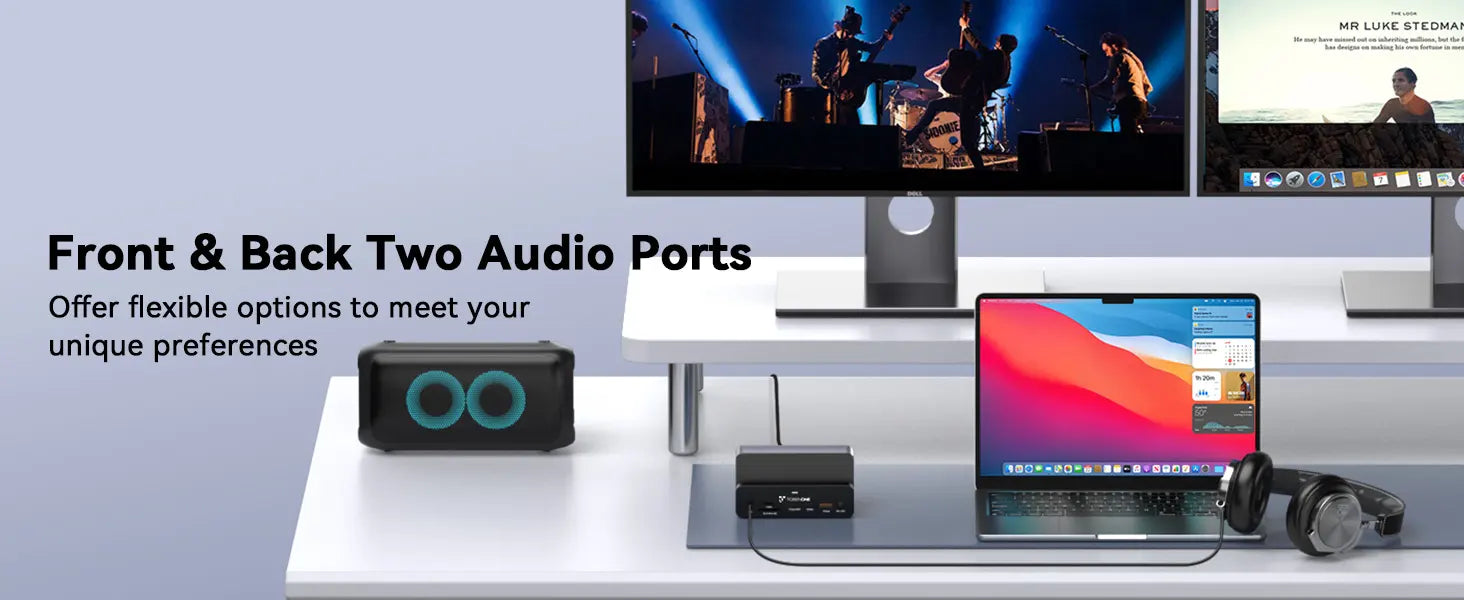

Upgrade Your Ethernet & Audio Connectivity: This TobenONE macbook dock boasts a 2.5Gbps Ethernet port for stable and lightning-fast network speeds, ideal for remote work, online gaming and file transfers. Equipped with dual audio ports, connect 2 headsets/stereo to the dock and select one device for sound output on your laptop's sound setup, providing convenience and flexibility for personalized setups. From video calls to streaming and music, enhance your productivity and enjoyment.
Specifications
Specifications
MODEL NUMBER: UDS040M
DRIVERS
Plug and play, no driver needed.
FEATURES
Front:
1 x 3.5mm Audio In&Out
1 x SD/TF 4.0 Slot: Read 150-250Mb/s, write 80-150Mb/s
1 x USB C 3.2: Support data transfer 10Gbps and 20W PD output
1 x USB C 3.2: Speed up to 10Gbps, only for data transfer
1 x USB A 3.2: Speed up to 10Gbps
1 x Power Button: Control dock power on (short press for 1S) /off (long press for 2S)
Back:
2 x USB A 2.0: For wireless devices
2 x USB A 3.0: 5Gbps, 5V@0.9A
1 x PD Port: Connect the included power adapter (Max 150W input, 100W output)
1 x USB A 10Gbps: Support data transfer 10Gbps
1 x 3.5mm Audio In&Out
1 x 2.5Gbps Ethernet: 2500/1000/100/10Gbps
1 x Display 2: HDMI 2 or DP (Resolution up to 4K@60Hz)
1 x Display 1: HDMI 1 (Resolution up to 4K@60Hz)
1 x HOST1 & HOST 2: Connect the MacBook, HOST 1 controls HDMI 1, HOST 2 controls all ports except HDMI 1
QUICK GUIDE
PACKAGE INCLUDES
1 x UDS040M docking station
1 x 150W power adapter
1 x dual USB-C cable
GUARANTEE
2 Year Warranty
Troubleshooting
Troubleshooting
If you have any questions, please let us know via support@tobenone.com.
